Universal Under Dash Brake Pedal Power Brake Pedal Bracket Street Rod Hot Rods

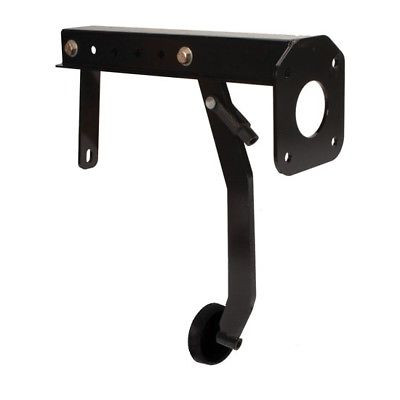

The PRAUF-1 is a universal bolt-on swing pedal assembly. It is a quality laser cut pedal assembly with a quality black powder coating. The under dash pedal provides a secure way to mount the brake power booster conversion with master cylinder and also has pre-drilled holes for a manual master cylinder on the firewall. This unit will fit a wide range of early Chevy, Ford, Dodge cars and trucks. Pedal bracket can be trimmed to fit your application and has holes to place pedal pivot point at 7", 8.5", 10", 11.5", or 13" from the firewall. Truly a universal brake pedal!

Product Description

Mounts under the dash and completely adjustable.

• Laser cut and powdercoated black
• Works with manual or power brakes!
• Adjusts from the firewall.
• Includes Pedal Pad.
• 3"3/8" Square bolt pattern for universal booster (P{ower)
• 3" 3/8 center to center bolt holes for master cylinder (Manual)
• Pedal pivot point at 7", 8.5", 10", 11.5", or 13" from the firewall
• 14" overall Length

For automatics only.
