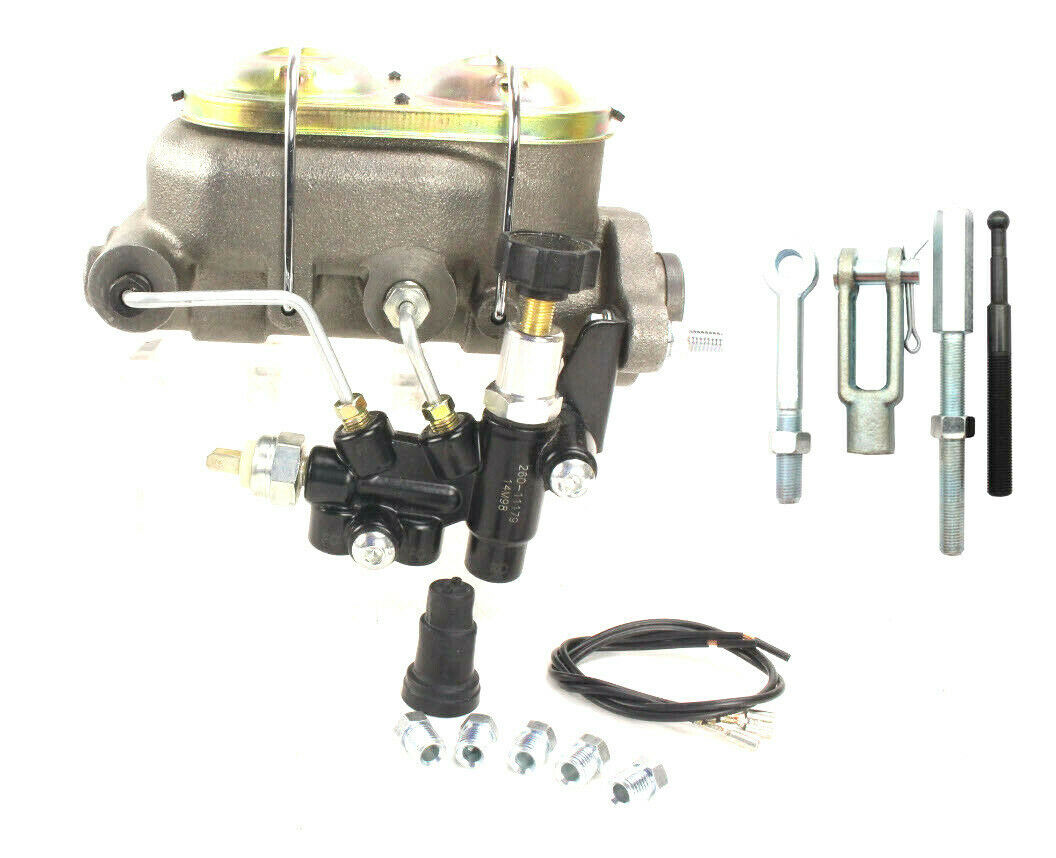

Universal Master Cylinder Kit w/ Universal Manual Rod Kit & Adjust Knob Valve

Description:

• Cast Iron Corvette Style Master Cylinder
• 1" Bore 9/16" and 1/2" ports left side

• Double Bail
• This includes the manual master cylinder rod kit, as well as a power adapter so that it will work for either manual or power brakes.

• Adjustable Knob Style Proportioning Valve, Compare to Wilwood 260-11179
• Prop valve lines/fittings to master cylinder

• Prop Valve bracket
• Adjustable Master Cylinder Push rod Kit
• Works with power and non-power applications Includes adapters for 10 most common combinations Accommodates eyelet, clevis & bell crank configurations
• Universal Adjustable Push Rod

Truly a universal master cylinder corvette style for your street rod. This application is for Disc Drum applications. If you need Disc/ Disc or are unsure of your setup and need help please message us.  See our other items in our store!

Master cylinder bolt hole to bolt hole is 3-3/8" from center to center. If you don't have bolts already on your firewall for the master you will have to make them for the master cylinder to connect to.
