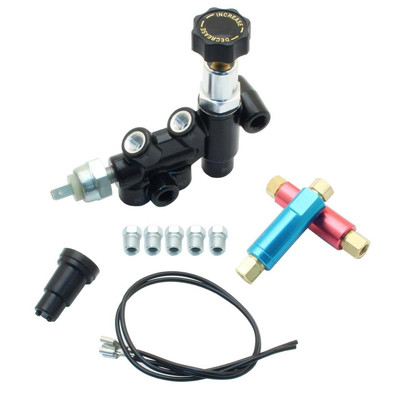

Combination Valve 3/8" Ports Residual Disc/Drum

Wilwood Style Adjustable Proportioning Valve For under floor mount

• (5) 3/8" Ports
• (2) Front Ports
• (1) Rear Port
• (2) Ports Feed Master Cylinder
• 2 Wire Brake Light Sensor Wire
• Sensor Wire Boot
• (5) 3/8"-24 Brake Line Fittings Included
• Black Finish
• (1) 10 lb Residual Valve
• (1) 2 lb Residual Valve

A residual valve acts like a one-way or check valve to maintain brake system pressure to eliminate the problems of a spongy pedal. This 10 & 2 PSI residual valve is installed inline between the master cylinder and disc brake calipers to keep 10 &2 PSI of residual pressure at the caliper after the brake pedal is released.

Truly an universal valve for any master cylinder. One front port can be plugged when only one port is needed for front brakes.
