DBK64721012LXR-GM-215 - 1964-1972 GM A Body Front & Rear Power Disc Brake Conversion Kit Drilled & Slotted & Powder Coated Red Calipers Rotors w/ 8"Dual Zinc Booster Kit

$1,329.95
SKU:
DBK64721012LXR-GM-215
Shipping:
Free Shipping. Faster Options Available At Checkout.
Quantity:

Reviews:

Product Description

Pirate Jack 1964–72 GM A-Body 4-Wheel Disc Brake Conversion Kit, with 8" Dual Zinc Power Booster | Chevelle, GTO, Cutlass, Skylark

Factory-style four-wheel disc brakes with power assist, all in one complete kit.

Want the look and feel of a factory power disc brake car without paying for race parts? This Pirate Jack kit converts both the front and rear of your 1964–72 GM A-Body to disc brakes and adds an 8" dual zinc power booster, a cast iron master cylinder and a disc/disc proportioning valve. It’s a clean, OE-style setup that stops the way your Chevelle, GTO, Cutlass or Skylark should. Replacement parts are easy to find for years to come.

Front disc brakes

  • Stock height spindles keep your factory ride height.
  • 11" vented rotors (5 x 4.75" bolt pattern, 7/16" studs) shed heat and resist fade.
  • Large GM single-piston calipers come preloaded with pads, so they’re ready to bolt on.
  • Backing plates, caliper brackets, rubber brake hoses, inner and outer bearings, seals, dust caps and mounting hardware are all included.

Rear disc brakes with a working parking brake

  • 11" vented GM rotors are multi-pattern, so they fit 5 x 4.75" with 7/16" studs and 5 x 4.5" with 1/2" studs.
  • Large-bore GM single-piston calipers are based on the 1979 Cadillac Eldorado design and have a self-adjusting parking brake.
  • D54 pads are included.
  • Caliper brackets, spacers, bracket hardware, rubber brake hoses, clips and emergency brake cables are all included.

8" dual zinc power booster conversion (disc/disc)

  • 8" dual diaphragm zinc power brake booster
  • Cast iron master cylinder
  • Brass disc/disc proportioning valve, matched to four-wheel disc brakes
  • Left-mount valve kit with two 3/8"-24 ports for the front brakes and one 9/16"-18 port for the rear
  • Valve bracket, lines, brake light warning switch and mounting hardware
  • Angled firewall brackets
  • Pedal rod extension and clevis

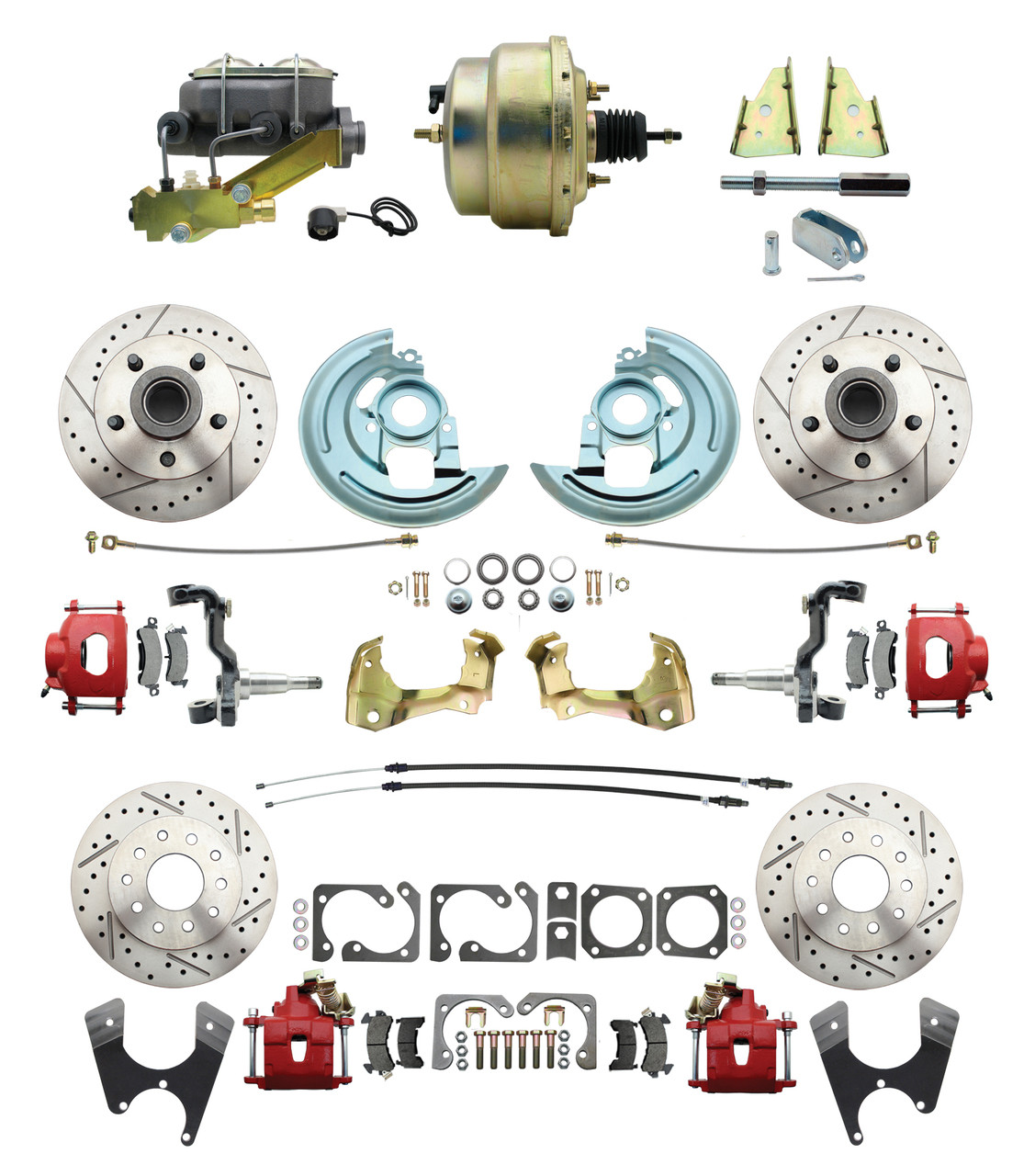

Complete Kit Includes

Front

  • Stock height spindles
  • 11" vented rotors, 5 x 4.75" with 7/16" studs
  • Large GM single-piston calipers, preloaded with pads
  • Caliper brackets
  • Backing plates
  • Rubber brake hoses
  • Inner and outer bearings, seals, dust caps and mounting hardware

Rear

  • 11" vented multi-pattern GM rotors (5 x 4.75" with 7/16" studs and 5 x 4.5" with 1/2" studs)
  • Large-bore GM single-piston calipers with self-adjusting parking brake
  • D54 brake pads
  • Caliper brackets and spacers
  • Bracket hardware
  • Rubber brake hoses and clips
  • Emergency brake cables

Power Brake Booster Kit

  • 8" dual zinc power brake booster
  • Cast iron master cylinder
  • Brass disc/disc proportioning valve
  • Left-mount valve kit (two 3/8"-24 front ports and one 9/16"-18 rear port)
  • Valve bracket, lines, brake light warning switch and mounting hardware
  • Angled firewall brackets
  • Pedal rod extension and clevis

Fitment: 1964–1972 GM A-Body

  • Chevrolet: Chevelle, El Camino, Monte Carlo (1970–72)
  • Oldsmobile: Cutlass, 442, F-85, Vista Cruiser
  • Pontiac: GTO, LeMans, Tempest
  • Buick: Skylark, Special

Tech Notes: Before You Order

  • Wheels: You’ll need 15" or larger wheels. This kit won’t fit 14" wheels.
  • Rear axle: The axle flange can be no more than 6.11" in diameter to fit the rotor hat, with a .050" x 45° chamfer and a 2.786" maximum axle register.
  • Not for trucks: This kit does not fit S-10 chassis or truck frames.
  • Master cylinder and valve: Rear disc brakes need a disc/disc proportioning valve and a 1-1/8" bore master cylinder. This kit includes the booster, master cylinder and disc/disc valve.
  • Track width: Disc brake conversions typically add about 1/4" to 3/8" of offset per side.

Easy-to-Find Replacement Parts
You won’t be stuck buying overpriced pads and rotors made only for one company’s kit. Replacement pads, rotors, bearings and more cross-reference to common GM parts you can get at your local auto parts store.

Built by Pirate Jack
Instructions are included, every part is brand new, and we back every part with a 1-year warranty.

Questions? Give us a call! Free tech support is available Monday through Friday, 8:00 AM to 4:00 PM EST. Call us at 866-601-4455.

Factory-style looks, four-wheel disc stopping power and power assist. Order your A-Body kit from Pirate Jack today.

Fitment Data

Fitment: 1964–1972 GM A-Body

Chevrolet: Chevelle, El Camino, Monte Carlo (1970–72)
Oldsmobile: Cutlass, 442, F-85, Vista Cruiser
Pontiac: GTO, LeMans, Tempest
Buick: Skylark, Special
