1957-1971 Dodge D100 Disc Brake Conversion Kit

Pirate Jack D100DBK – 1957–1971 Dodge D100 Front Disc Brake Conversion Kit (2WD, 5-Lug)

Finally, a disc brake conversion made for your Dodge D100.

If you own a classic Dodge D100, you know the search. There are disc brake conversion kits everywhere for Chevys and Fords, but try finding one for a D100 and the options get thin fast, and the few you do find usually cost a small fortune. That’s why D100 owners are always glad when they find us.

The Pirate Jack D100DBK is one of the few drum-to-disc conversion kits built for 1957–1971 2WD, 5-lug Dodge D100 trucks, and one of the most affordable ways to get there. It gives your classic Dodge truck the stopping power, control and confidence of modern front disc brakes without a custom fabrication bill.

Why convert your D100 to front disc brakes?
Old drum brakes were fine when your D100 rolled off the line, but they can’t keep up with today’s traffic, heavier loads or the way you want to drive your truck.

• Stronger, more confident stopping: Discs shed heat better than drums and resist fade, especially when you’re hauling or towing.
• Better in wet weather: Discs clear water fast, so your brakes come back quickly after rain or a puddle.
• Less pull, less adjusting: Disc brakes stop straighter and self-adjust, so you’re done chasing drum adjustments.
• Modern wheel options: The conversion lets you run 15" or larger modern disc brake wheels.

Everything you need for the brakes, in one box
The D100DBK isn’t a bracket kit that leaves you hunting for the rest. Rotors, calipers, pads, brackets, bearings, seals, dust caps and hoses are all included, so your front brakes arrive ready to go.

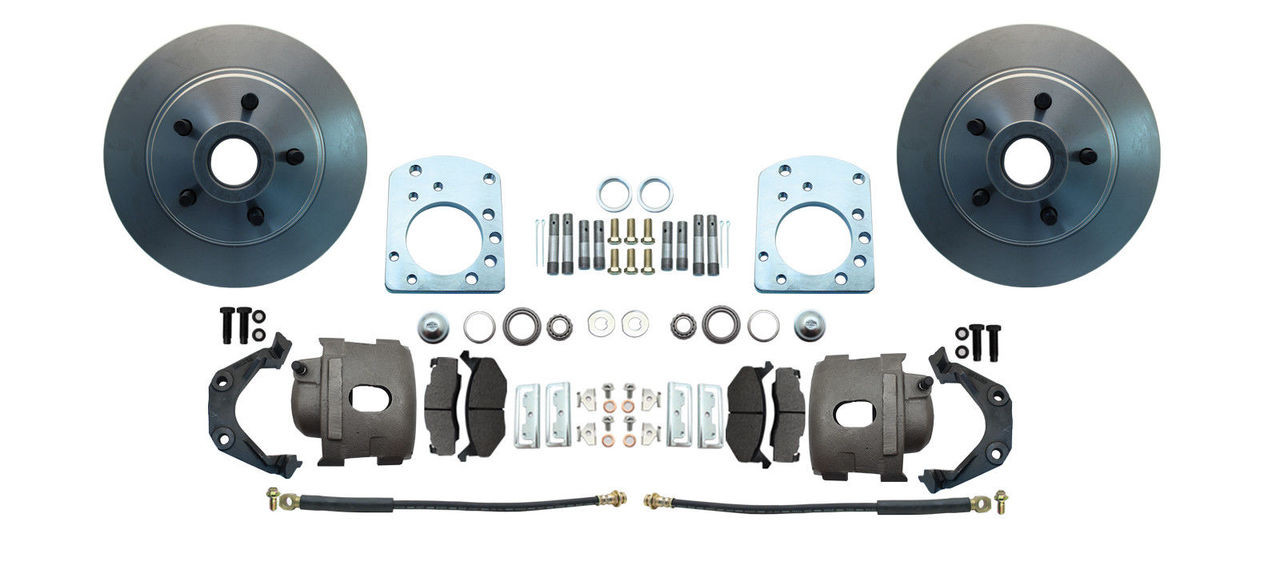

What’s Included

• 12" brake rotors (2)
• Big bore single piston sliding calipers (2)
• MKD84 brake pads
• Caliper brackets (2)
• Inner and outer wheel bearings (2 each)
• Grease seals (2)
• Dust caps (2)
• Brake hoses (2)

Fitment & Requirements

• 1957–1971 Dodge D100 trucks, 2WD, 5-lug
• Requires 15" or larger modern (1973 and up) disc brake wheels
• Your original spindles must be in good condition, free of thread damage, scoring, pitting or heat damage
• Master cylinder, power booster, proportioning valve, and vacuum hose and fittings are not included. Check that your master cylinder and valves are suited to front disc brakes.

⚠️ Installation Note: Please Read
This kit requires modifying your original spindles to mount the caliper brackets. Drilling and tapping are required. The kit’s brackets serve as your drilling template, and the instructions walk you through every step. You’ll need:

• Drill bits: 1/8" pilot, stepping up to 25/64", plus a 37/64" bit
• Taps: 7/16"-20 bottom tap and 5/8"-18 tap
• Red Loctite, high-temp wheel bearing grease and a bearing packer

We recommend installation by an experienced mechanic or a builder comfortable with drilling, tapping and brake work. See the spindle modification picture in this listing before ordering.

Download the D100DBK Installation Instructions
Read through the full step-by-step instructions, including the spindle modification, before you start your install.

Want to go further? Optional upgrades available:

• Drilled and slotted rotors
• Stainless steel braided brake hoses

Why Buy From Pirate Jack

• ✔ One of the few drum-to-disc conversion kits made for the Dodge D100
• ✔ One of the most affordable D100 disc brake options available
• ✔ Complete kit with rotors, calipers, pads, brackets, bearings, seals, dust caps and hoses
• ✔ Big bore calipers for strong clamping force
• ✔ Step-by-step instructions available to download
• ✔ Real people who know brakes and are happy to help

Questions? Give us a call! The Pirate Jack team knows D100 brake conversions and will help confirm fitment. Call us at 866-601-4455.

Your D100 has earned modern brakes. Order your D100DBK from Pirate Jack today and stop like you mean it.
