1947-54 Chevy Truck Power Brake Pedal Assembly for Disc Drum Brakes

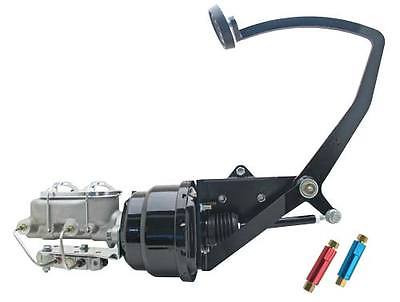

1947–1954 Chevy Truck Under-Frame Brake Pedal Assembly with 7" Dual Power Booster, Master Cylinder & Proportioning Valve Kit

Upgrade your Advance Design Chevy truck to modern power brakes with one complete, ready-to-install package. This under-frame brake pedal assembly includes everything you need to bring confident, smooth stopping power to your 1947–1954 Chevy pickup, whether you’re building a resto-mod, a street rod, or a dependable daily cruiser.

At the center of the kit is a 7" dual diaphragm power brake booster in a durable black powder-coated finish. Its compact size fits neatly under the frame while still delivering strong power assist. It’s paired with an aluminum disc/drum master cylinder with a 1" bore, which gives you the volume and pressure needed for a front disc and rear drum setup. The included proportioning valve kit is pre-plumbed for a bottom mount, so you get balanced front-to-rear braking without searching for fittings and lines.

The under-frame pedal assembly moves the brake hardware below the floor, keeping your cab clean and your setup clear of the firewall. We’ve also included both residual check valves: the 2 lb valve (red) for the disc brake circuit and the 10 lb valve (blue) for the drum brake circuit. That way your system holds the right pressure from day one.

What’s Included

• Under-frame brake pedal assembly (black)
• 7" dual diaphragm power brake booster, black powder coated
• Aluminum disc/drum master cylinder, 1" bore
• Proportioning valve kit, bottom mount, with lines
• 2 lb residual check valve (disc)
• 10 lb residual check valve (drum)

Fits: 1947–1954 Chevrolet Truck

Why Choose This Kit?

• Complete system: no piecing together parts from different suppliers
• Modern power-assisted braking for your classic truck
• Built for disc/drum conversions
• Black powder-coated booster resists corrosion and looks sharp
• Clean under-frame mounting frees up space under the dash

Stop guessing and start stopping. Give your ‘47–‘54 Chevy the brakes it deserves.
